Different Types Of Logic Gates

June 26, 2024 Post a Comment

Different types of logic gates

All digital systems can be constructed by only three basic logic gates. These basic gates are called the AND gate, the OR gate, and the NOT gate. Some textbooks also include the NAND gate, the NOR gate and the EOR gate as the members of the family of basic logic gates.

What are the different types of logic gates and its uses?

The basic logic gates are classified into seven types: AND gate, OR gate, XOR gate, NAND gate, NOR gate, XNOR gate, and NOT gate. The truth table is used to show the logic gate function. All the logic gates have two inputs except the NOT gate, which has only one input.

What are the 4 basic designs of logic gates?

Logic gates. Digital systems are said to be constructed by using logic gates. These gates are the AND, OR, NOT, NAND, NOR, EXOR and EXNOR gates. The basic operations are described below with the aid of truth tables.

How many types of gate do we have?

There are three types of gates: universal gates, primary gates and secondary gates. The universal gates include NOR gate and NAND gate.

What are 7 logic gates?

Basic logic gates. There are seven basic logic gates: AND, OR, XOR, NOT, NAND, NOR, and XNOR. The AND gate is so named because, if 0 is called "false" and 1 is called "true," the gate acts in the same way as the logical "and" operator.

What is XOR and XNOR?

The XOR output is asserted whenever an odd number of inputs are asserted, and the XNOR is asserted whenever an even number of inputs are asserted: the XOR is an odd detector, and the XNOR an even detector. This very useful property will be exploited in data error detection circuits discussed later.

Where is XOR gate used?

XOR gates are used in circuits that perform arithmetic operations and calculations, especially in half-adders and adders. The ability of the XOR gate to compare two logic levels and give an output dependent upon the input condition is very useful in many computational circuits.

What logic gate is most used?

The AND and NAND gates are possibly the most widely used form of logic gate that are used. Of the two the NAND gate is the most widely seen. OR / NOR : OR gates and NOR gates are another form of logic gate that form one of the basic building blocks of digital technology.

What are the two main types of logic?

Formal and informal logic

Logic encompasses both formal and informal logic.
The most literal approach sees the terms "formal" and "informal" as applying to the language used to express arguments. ...
Another approach draws the distinction according to the different types of inferences analyzed.

What is a universal gate?

A universal gate is a gate which can implement any Boolean function without need to use any other gate type. The NAND and NOR gates are universal gates. In practice, this is advantageous since NAND and NOR gates are economical and easier to fabricate and are the basic gates used in all IC digital logic families.

Is XOR a basic gate?

These gates are not basic gates in their own and are constructed by combining with other logic gates. Their Boolean output function is significant enough to be considered as a complete logic gate. The XOR and XNOR gates are the hybrids gates.

Why NAND gate is called universal gate?

The OR, AND, and NOT are the three basic logic gates as they together can construct the logic circuit for any given Boolean expression. NOR and NAND gates have the property that they individually can be used to hardware-implement any logic circuit. For this reason, the NAND and NOR gates are called universal gates.

Which gate is fastest?

9. Which gate is faster? Explanation: NOR gate is faster. NAND is more complex than NOR and thus NOR is faster and efficient.

Are there 5 universal gates?

There are 5 universal gates. Explanation: There are only 2 main universal gates: NAND and NOR. A NAND gate as well as the NOR gate can be used to implement any other Boolean expression thus it is called as a universal gate.

What is basic logic gate?

These are important digital devices that are mainly based on the Boolean function. Logic gates are used to carry out logical operations on single or multiple binary inputs and give one binary output. In simple terms, logic gates are the electronic circuits in a digital system.

How does XOR gate work?

An XOR gate implements an exclusive OR, i.e., a true output result if one, and only one, of the gate inputs, is true. If both the inputs are false (either 0 or LOW) or if both are true, there results in a false output.

What gate is a 7432?

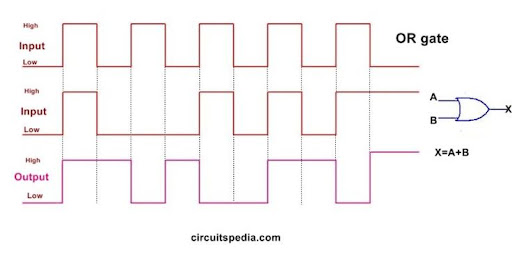

7432 IC is member of 74xxx series gate ICs and has the functionality of OR gate or function. It will give high if either all or any of the input is high. 7432 has 4 OR gates of 2 inputs in 1 package.

What is a NAND logic gate?

What is a NAND gate? A two-input NAND gate is a digital combination logic circuit that performs the logical inverse of an AND gate. While an AND gate outputs a logical “1” only if both inputs are logical “1,” a NAND gate outputs a logical “0” for this same combination of inputs.

Why XOR is called exclusive or?

It gains the name "exclusive or" because the meaning of "or" is ambiguous when both operands are true; the exclusive or operator excludes that case. This is sometimes thought of as "one or the other but not both". This could be written as "A or B, but not, A and B".
