Igbt Testing By Multimeter

June 26, 2024 Post a Comment

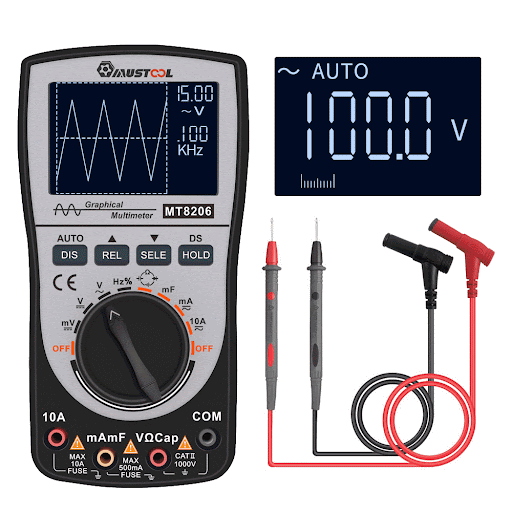

Igbt testing by multimeter

Using a digital ohmmeter on the diode scale:

<ol class="X5LH0c"><li class="TrT0Xe">Touch the + (red) meter lead to G1 and the - (black) to E1.</li><li class="TrT0Xe">Touch the + (red) meter lead to G2 and the - (black) to E2.</li><li class="TrT0Xe">Measure resistance between C1 and C2/E1. Should read a low resistance (about a diode drop). </li><li class="TrT0Xe">Measure resistance between E2 and C2/E1.</li></ol>

How do I know if my IGBT is good or bad?

(1) Measure the resistance between the collector and emitter of each IGBT tube in the module, short the gate-emitter, the multimeter's red pen is connected to the collector, the black meter is connected to the emitter, and the normal module resistance value is generally above the megaohm level.

How much voltage can a IGBT handle?

IGBT Modules up to 4500 V / 6500 V - Infineon Technologies.

What is the output of IGBT?

It is a power transistor that combines an input MOS and an output bipolar transistor. Figure (b) shows an example of the IGBT structure. A P region is formed on the drain side of the MOSFET. The resistivity of the high-resistance N- drift region decreases when holes are injected from this P region at turn-on.

What causes IGBT to fail?

Thermo-mechanical fatigue due to variations of power dissipation has been identified as a failure mechanism of IGBT.

Is IGBT DC or AC?

An IGBT power module functions as an electronic switching device. By alternate switching direct current (DC) can be transformed to alternating current (AC) and vice versa.

Can IGBT be repaired?

Our skilled industrial electronic technicians can repair IGBT modules from most major manufacturers, including General Electric. When you need expert service and support for your wind turbine IGBT, you can rely on TEAMSESCO! Our IGBT repair services provide OEM-quality at up to 50% less than the cost of OEM solutions.

What is IGBT fault?

IGBT (Insulated Gate Bipolar Transistor) switch faults are one of the main roots of electrical faults in inverters and motor drives. In this paper, a method based on neural network is implemented to detect and isolate switch faults in a three phase voltage source inverter.

How do you damage IGBT?

IGBT mechanical failure protection If the force is too strong, it will damage the IGBT. If the force is too light, during the transportation and installation process, the vibration will cause poor contact, the thermal resistance will increase, and the device will have over-temperature damage.

Can an IGBT be tested in circuit?

IGBT modules can be tested rapidly, by using a standard multimeter, and the test consists in verifying three things: the Gate terminals are insulated from the relative Emitters; the Diodes are in good condition; the IGBTs are in good condition.

What is IGBT voltage?

Today, most commonly used IGBTs in the 600- to 1200 V range are typically Punch-Through (PT) or Depletion or Field-Stop (DS or FS) type. However, these types of IGBTs are typically best suited for and designed to withstand and block a voltage from collector to emitter (collector positive to emitter) only.

Can IGBT switch AC?

AC 1 o The IGBT and the power MOSFET are not suited to switching AC waveforms directly. The IGBT can only conduct current in one direction due to its use of conductivity modulation, while the power MOSFET has an anti-parallel diode that will conduct for every negative cycle.

What is the main purpose of IGBT?

The most basic function of an IGBT is the fastest possible switching of electric currents, thus achieving the lowest possible switching losses. As the name “Insulated Gate Bipolar Transistor” reveals, an IGBT is a bipolar transistor with an isolated gate structure; the gate itself is basically a MOSFET.

Why IGBT is used for high-voltage?

Therefore, IGBTs cause higher switching losses. In contrast, IGBTs have advantages in that they can easily achieve high withstand voltage and have relatively low on-state voltage even at high current and high temperature.

Is IGBT voltage controlled?

An IGBT is a device that combines a MOSFET, a type of FET, in the front stage and a bipolar transistor in the rear stage. An IGBT operates in the same manner as an FET when it turns on. Therefore, an IGBT is also a voltage-driven device.

Does IGBT have diode?

When learning power electronics, we all discovered that MOSFETs can conduct in reverse (because they have a body diode) and IGBTs can't (because they don't).

How IGBT turn on and off?

The Insulated Gate Bipolar Transistor (IGBT) can be switched 'ON' and 'OFF' by activating the gate. If we make the gate more positive by applying voltage across the gate, the IGBT's emitter keeps the IGBT in its “ON“state and if we make the gate negative or zero push the IGBT will remain in “OFF” state.

What is inside an IGBT?

It is a bipolar transistor with an insulated gate terminal. The IGBT combines, in a single device, a control input with a MOS structure and a bipolar power transistor that acts as an output switch. IGBTs are suitable for high-voltage, high-current applications.

Is IGBT used in High Voltage?

Today, high voltage (≥1700 V/1000 A) IGBT devices are used predominantly for traction applications where power scaling of the converter systems is realized by paralleling devices. Recently, IGBT's have also been used for electrical power transmission and distributions systems (HVDC).

Is IGBT better than MOSFET?

In the low-current region, the MOSFET exhibits a lower on-state voltage than the IGBT. However, in the high-current region, the IGBT exhibits lower on-state voltage than the MOSFET, particularly at high temperature.
